Simple handling, highest quality

Bosch Manufacturing Solutions means highest quality. This is also reflected in the design of our coating systems. Based on the requirements of our own production, we have optimized all components in terms of durability and ease of maintenance. A modern system control reliably detects deviations and prevents quality losses and facilitates operation. The plasma sources developed by us allow significantly higher coating rates and thus excellent productivity. For a-C:H layers we use a microwave plasma source. This enables plasma generation and substrate bias to be decoupled. Irrespective of the load, the layer hardness can be adjusted in addition to a very high coating rate (factor 2 compared to standard systems). We have developed a pulsed arc source especially for ta-C layers. This enables coating rates comparable to those of a-C:H layers and avoids the well-known disadvantage of very long coating times.

Our plasma systems – as individual as your requirements

All of our coating systems are modular and a variety of options are available to adapt the technology to your requirements. This provides the base for producing all common coatings. Our concept offers a perfect platform for your own developments. If necessary, our experts will be happy to support you with technical questions.

Plasma Coating Systems Bosch Manufacturing Solutions

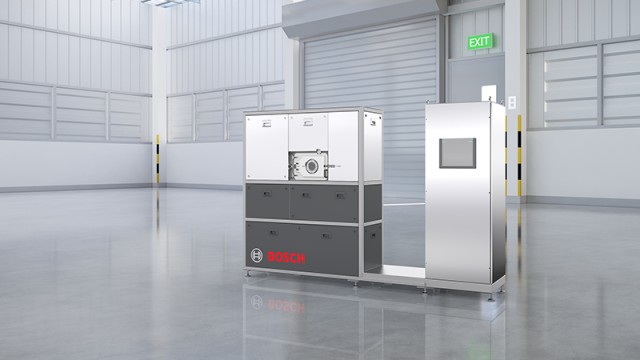

PCS DESKTOP

Desktop rig with high rate process for DLC

The PCS DESKTOP impresses above all with its compact design and the extremely short coating times. With it, individual parts and small series can be flexibly coated with little effort. The plasma jet source enables the realization of DLC coatings of up to 5 μm within 15 - 30 minutes. In addition, the plasma jet cleans the component surface of particles and dust. In this way, the system can usually be placed directly in standard production environments without the need of a dedicated coating room. Contact us for more information

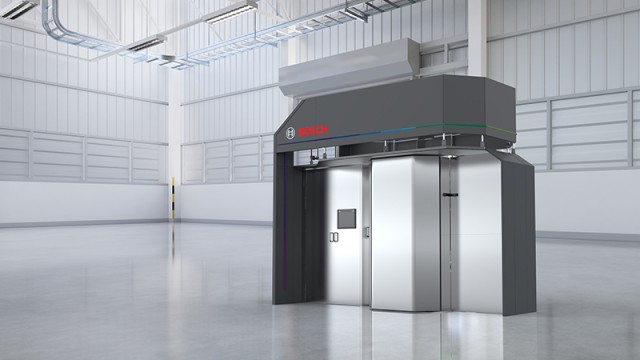

PCS800

Flexibility for development and production

By combining different plasma sources, the PCS800 can be used flexible and is suitable both as a development system and for small to medium scale series production. Depending on the configuration, it can be used to produce high-quality DLC layers as well as ta-C or hard material layers such as CrN. The system can be equipped with measuring devices such as mass spectrometers or plasma monitors for analysis and process monitoring. Contact us for more information

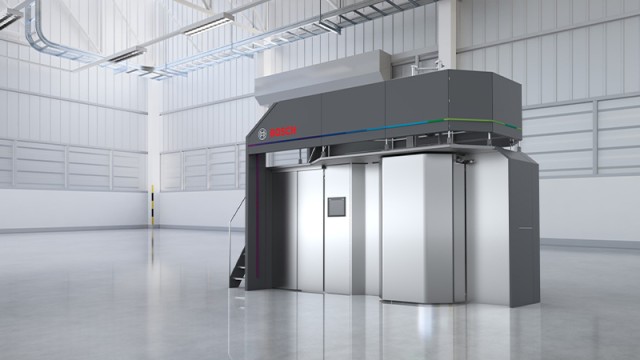

PCS1000

Efficiency and quality

Coating systems of the PCS1000 type are used worldwide in all Bosch coating centers and are continuously being further developed. Robustness and user-friendliness are particularly important to us. We are particularly proud of our microwave-based plasma sources, which we use to achieve coating times for DLC that are significantly below those of comparable systems. Contact us for more information

PCS OPTIMA

Innovation through coating

The PCS OPTIMA is the optimal solution for the implementation of coatings that are subject to special requirements. For this purpose, the system can be equipped with many innovative plasma sources such as pulsed arc sources, microwave sources, DC arc or HIPIMS cathodes. Corresponding process analysis from mass spectrometers to plasma monitors is also available. Contact us for more information

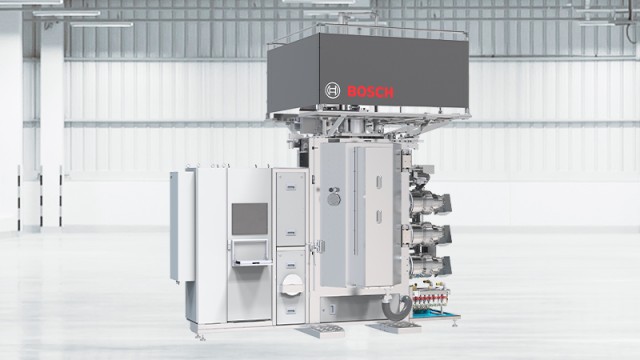

PCS1500

Designed for large volume components

The PCS1500 has a chamber volume increased by 50% and enables the efficient coating of large components. Due to the consistent standardization, the system can easily be operated in combination with smaller PCS systems.Contact us for more information

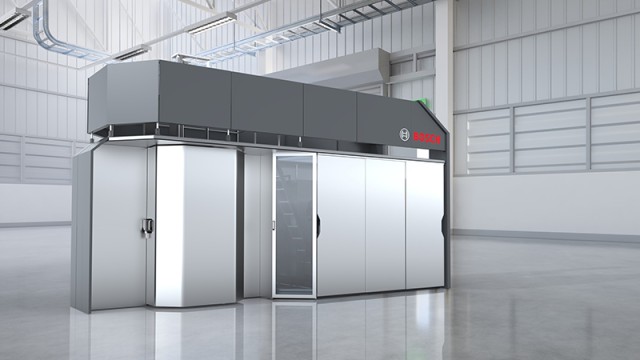

	PCS Desktop	PCS800	PCS1000	PCS1200	PCS1500
Standard technologies	PCS Desktop PA-CVD	PCS800 Sputtering + PA-CVD (MW)	PCS1000 Sputtering + PA-CVD (MW)	PCS1200 Sputtering + PA-CVD (MW)	PCS1500 pulsed cathodic arc + Sputtering + PaCVD (MW)
Coating volume	PCS Desktop D 150 h 200	PCS800 D 710 h 600	PCS1000 D 710 h 1000	PCS1200 D 710 h 1500	PCS1500 D 710 h 1000
Max. load	PCS Desktop 3 kg	PCS800 1000 kg	PCS1000 1000 kg	PCS1200 2000 kg	PCS1500 1000 kg
Standard coatings	PCS Desktop high rate DLC	PCS800 DLC / Si DLC / CrN	PCS1000 DLC / Si DLC / CrN	PCS1200 DLC / Si DLC / CrN	PCS1500 DLC / ta-C / Si DLC / CrN
Process duration / cyle time	PCS Desktop 0.25 ‒ 0.50 hrs	PCS800 4 hrs	PCS1000 4 hrs	PCS1200 4 hrs	PCS1500 4 hrs / ta-C 2 um
Options	PCS Desktop Si DLC; Duplex	PCS800 DC-ARC, pulsed cathodic arc	PCS1000 DC-ARC, pulsed cathodic arc	PCS1200 DC-ARC, pulsed cathodic arc	PCS1500 HIPIMS; DC-ARC

Range and Services

By using our technology in our own coating centers, we know how the production chain affects costs and quality. Automation and data collection are also a key element in efficient coating production, allowing for significant competitive advantages. Therefore, all of our coating systems are equipped accordingly (IOT ready). As part of the Robert Bosch technology group, we have extensive experience and resources to implement IOT in your production.

Plant engineering

Wide range of systems

Digitalization

Innovative I4.0 concepts

Turnkey solutions

Ready-to-use systems

Know how

Individual support from subject matter experts worldwide

Individuality

Customized developments according to your requirements
